Coatings
PPGI — Pre-painted Galvanised
Colour coated on a zinc (GI) base — the workhorse for roofing, cladding and appliances.
Overview
About PPGI

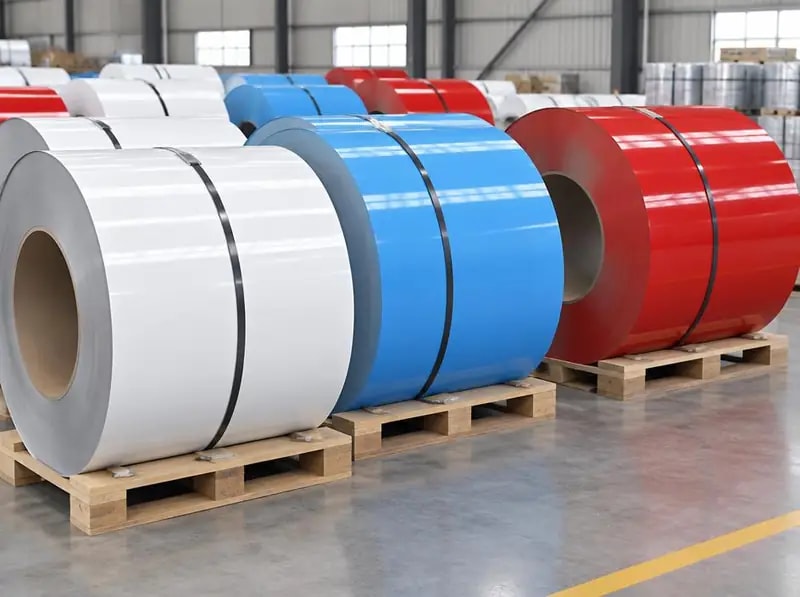

PPGI is galvanised steel coil that is cleaned, pre-treated, primed and finish-coated on our continuous colour coating line. The zinc layer protects the steel from rust while the paint gives colour, weather resistance and a clean finish. It is the most widely used colour coated steel in India for industrial roofing, wall cladding, pre-engineered buildings, sandwich panels, doors, shutters and white goods. We supply PPGI in coils, cut sheets, slit coils and ready profile sheets, in RAL-matched shades and a choice of paint systems for each climate.
Specifications
Specifications
| Thickness | 0.14 – 1.20 mm |
|---|---|
| Width | 700 – 1500 mm |
| Base metal | Galvanised steel, zinc Z60 – Z275 (typical) |
| Paint systems | RMP polyester, SMP, PVDF, epoxy backer |
| Top coat DFT | 15 – 25 microns typical (plus 5 – 7 micron primer) |
| Back coat DFT | 5 – 10 microns typical |
| Gloss | Matt, semi-gloss or high-gloss |
| Standards | IS 14246 / ASTM A755 (typical reference) |
Values marked "typical" are industry reference and are confirmed per order by our team.
Share thickness, width, shade, paint system, quantity and form — we reply with price and lead time.
How it is made
Six steps on our colour coating line
Coil loaded, joined end-to-end for non-stop running.
Stores strip so the line never stops at coil change.
Alkali degreasing, rinsing and chemical conversion coat.
Roll-coated primer, cured in the first oven.
Top coat and backer applied, cured in the finish oven.
Film thickness, gloss and colour checked; coil rewound and packed.
Applications
Where it is used
