Product · HSN 72103090
PPGI
A baked-on paint system applied over zinc-coated steel, combining corrosion resistance with a durable, ready-to-install decorative surface.
Specifications
| Thickness | As per need (0.20 – 1.20 mm) |
| Width | 600 – 1250 mm |
| Substrate | Hot-dip galvanised steel (Z80 – Z275) |
| Paint System | RMP / SMP / HDP / PVDF |
| Paint Thickness | Top 15–25 µm, back 5–10 µm |
| Color | RAL shades or customer sample |
| Grade | IS 14246, SGCC, DX51D or as specified |
| Tensile Strength | 270 – 550 MPa |
| Surface | Glossy, matt, wrinkle or printed |
| Product Form | Coil, sheet or profile |
| Diameter | Inner 508 / 610 mm |
| Corrosion Resistant | Yes |
| Heat Resistance | Yes |
| Steel Standard | IS 14246, JIS G3312, ASTM A755 or equivalent |
| Recyclable | Yes |
| Application | Roofing, cladding, appliances, PEB |
| Standard | Pre-painted galvanised |
| HSN code | 72103090 |
Where it is used
PPGI supplied in the grade, size and finish cladding require.
PPGI supplied in the grade, size and finish roofing require.
PPGI supplied in the grade, size and finish appliances require.
PPGI supplied in the grade, size and finish pre-engineered buildings require.
Available shapes & forms

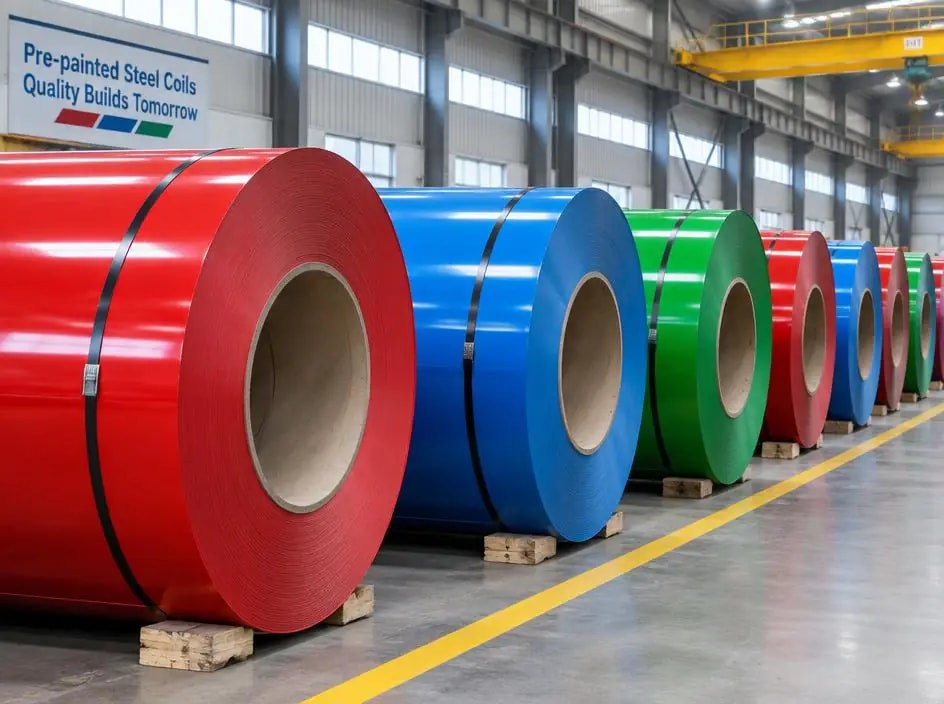

Full coils in GI, GL or colour-coated finish.

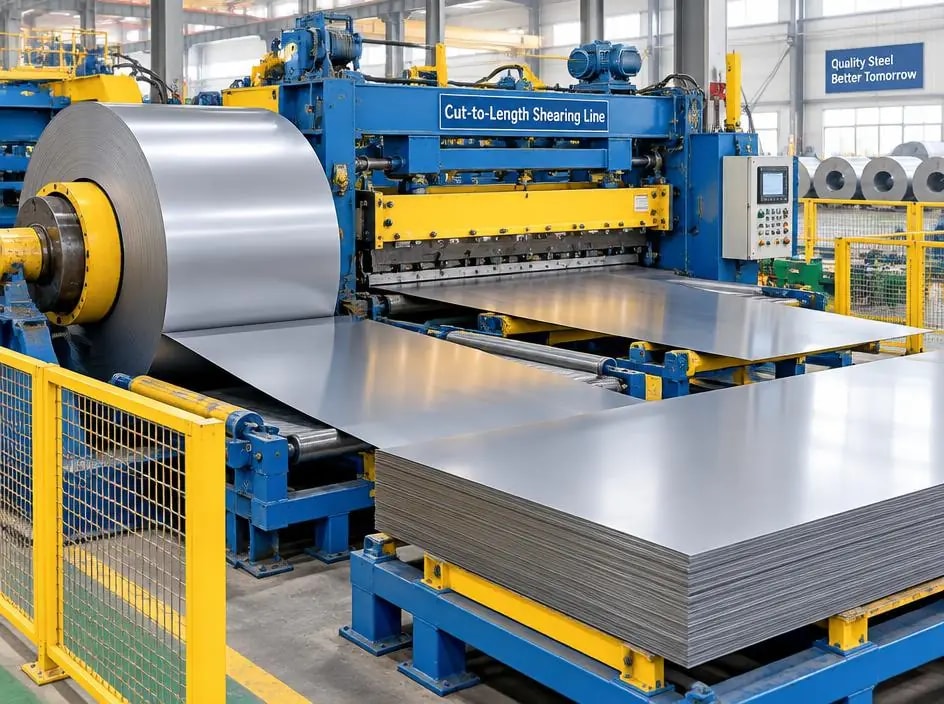

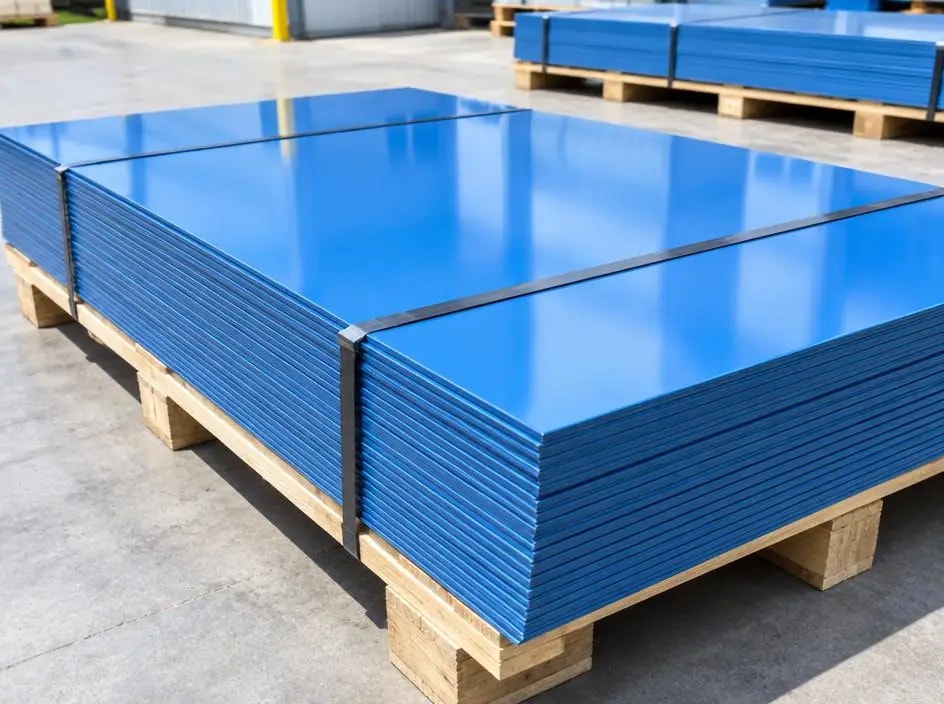

Plain sheets cut to length for fabrication.

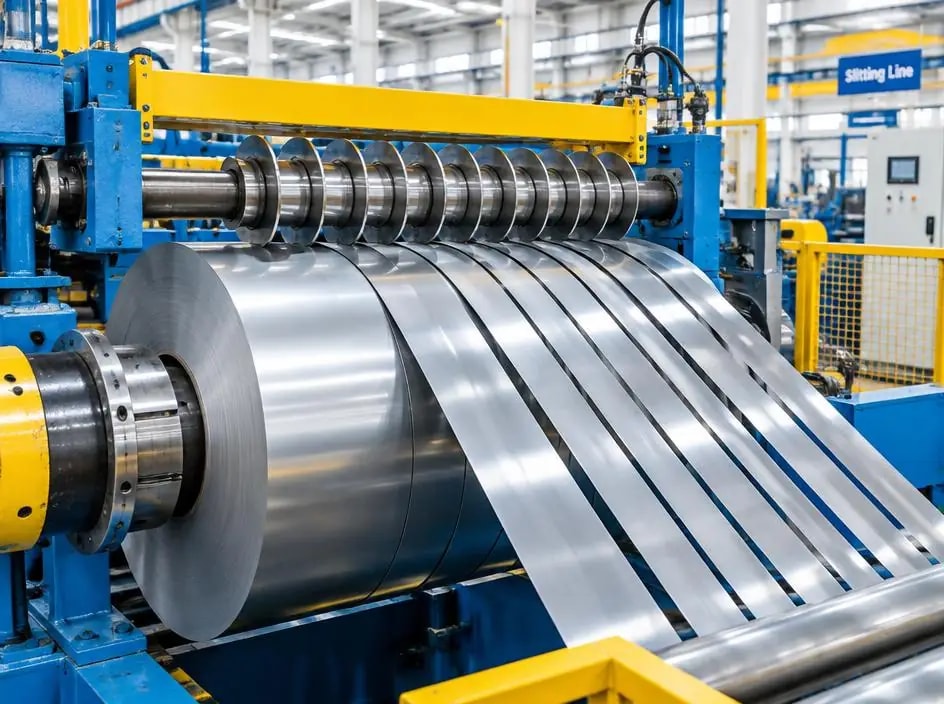

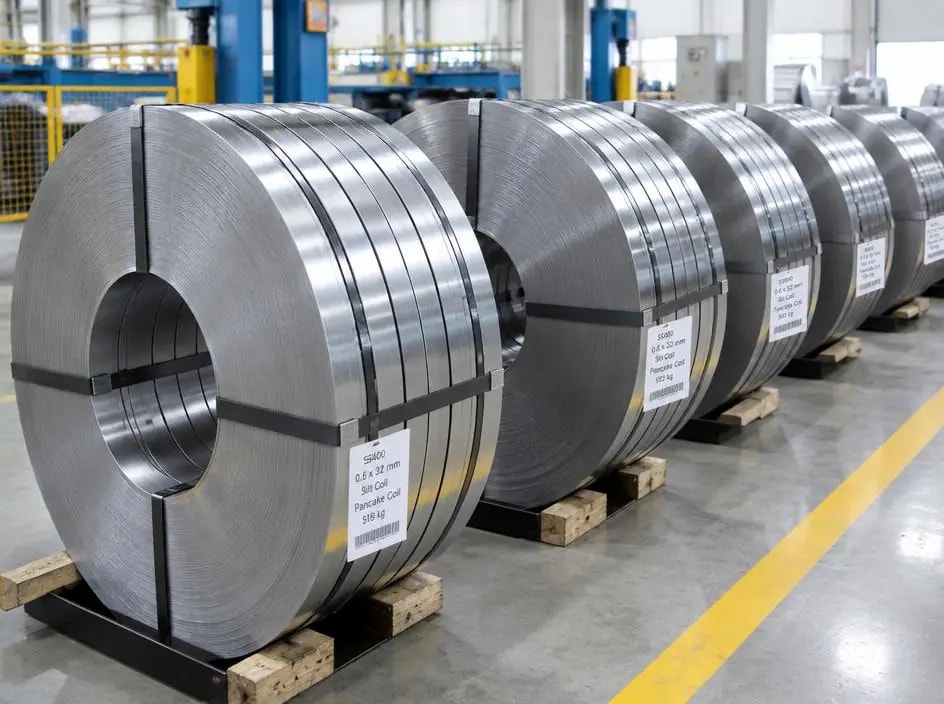

Narrow coils slit for purlins, ducts and sections.

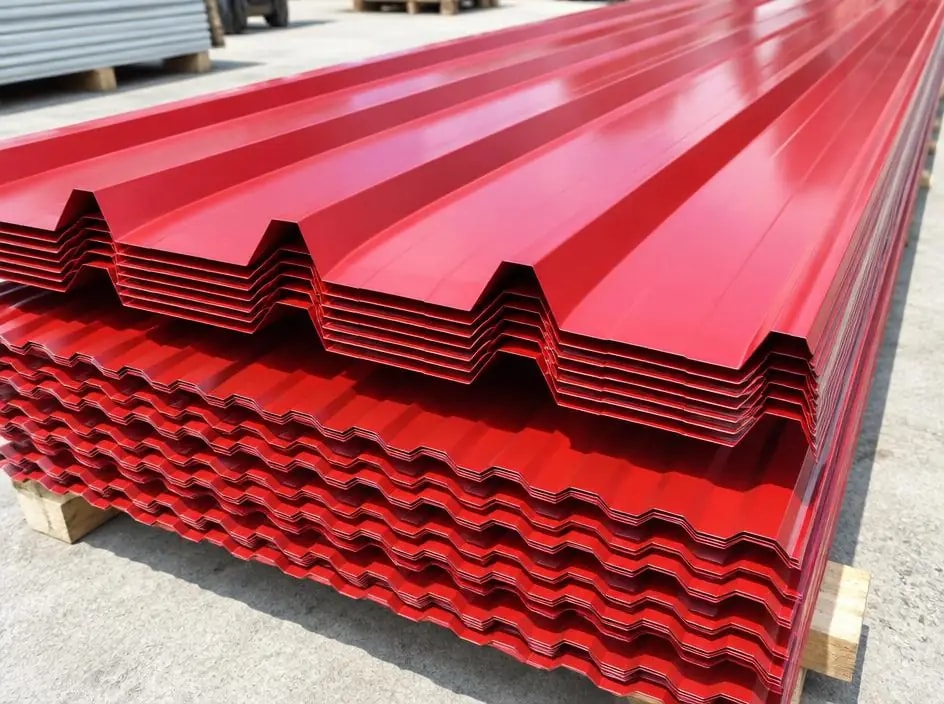

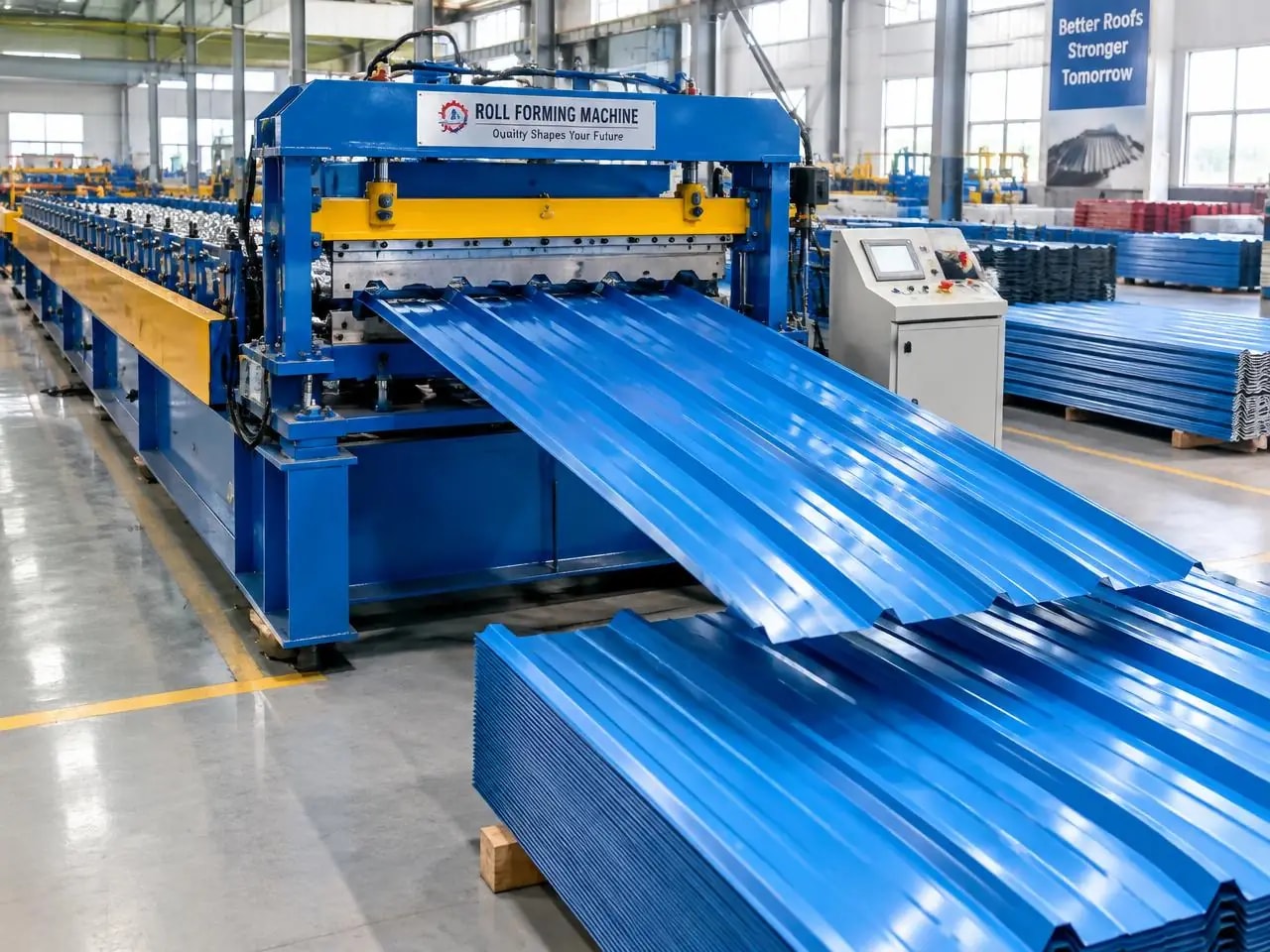

Trapezoidal and corrugated roofing and wall sheets.
What Avighna does with PPGI
How PPGI is made

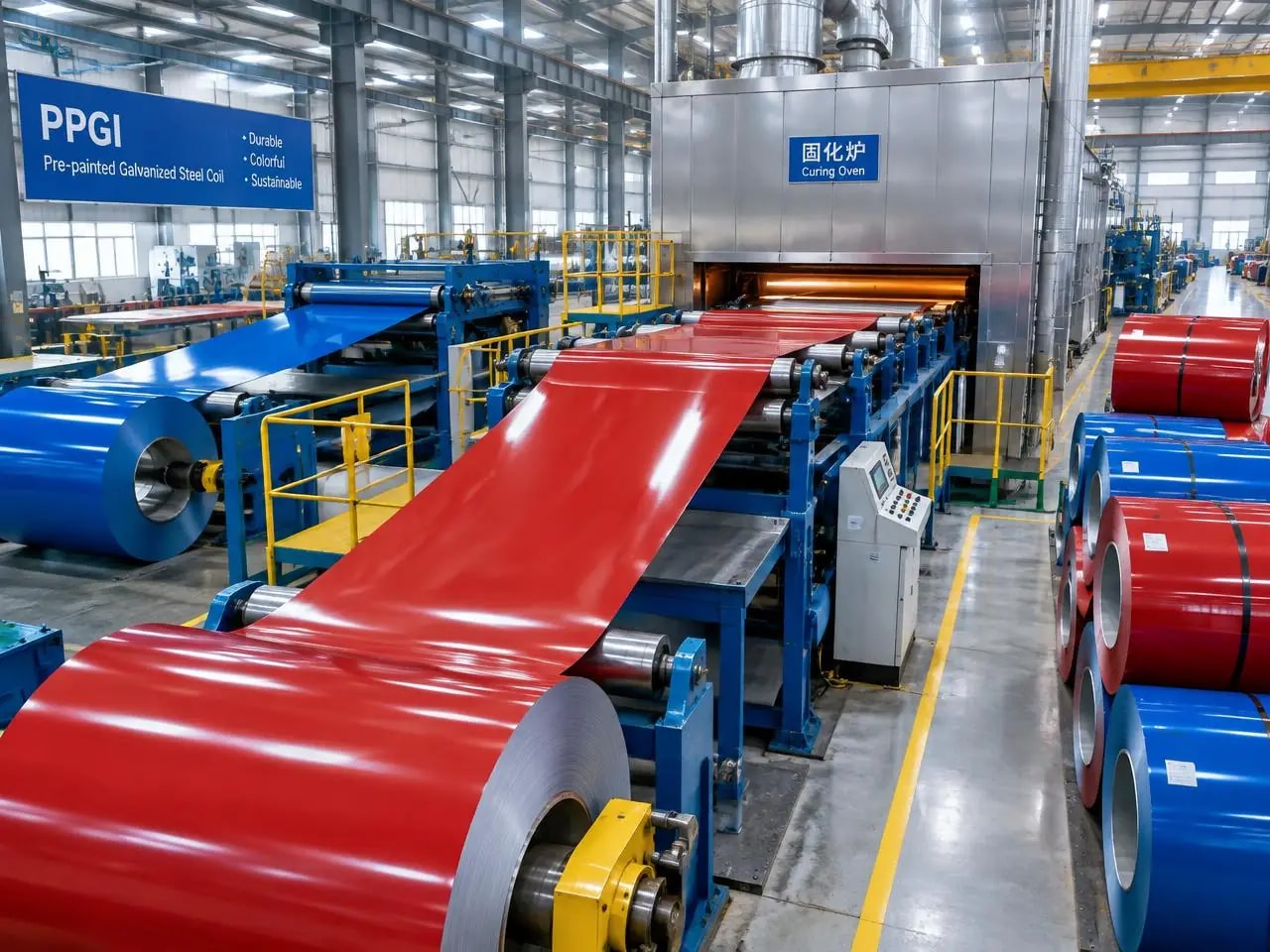

Galvanised coil is chemically pretreated, then roller-coated and oven-baked in a continuous colour coating line.
- 1Pretreatment
Galvanised strip is cleaned and chemically converted so paint adheres permanently rather than sitting on the zinc.
- 2Primer coat & cure
A primer is roller-applied to both faces and cured in a hot-air oven.
- 3Top coat & bake
The finish coat is applied to the RAL shade and baked to a controlled peak metal temperature.
- 4Cooling & recoiling
Water quenching and recoiling follow; film thickness, gloss, adhesion and bend are tested per coil.
