Product · HSN 72106900
Profile Sheets (Roofing & Side Walls)
PPGI and PPGL coil roll-formed into trapezoidal and corrugated profile sheets for roofing and side wall cladding — supplied cut to the rafter or wall length required, with matching ridges, flashings and fixings.
Specifications
| Thickness | 0.40 – 0.80 mm |
| Effective Cover | 1000 – 1070 mm |
| Substrate | PPGI or PPGL (Galvalume) |
| Profile Type | Trapezoidal, corrugated, standing seam |
| Rib Height | 18 – 40 mm |
| Paint System | RMP / SMP / HDP |
| Color | RAL shades |
| Length | Cut to site requirement |
| Accessories | Ridges, flashings, fixings |
| Corrosion Resistant | Yes |
| Steel Standard | IS 14246, IS 15965 |
| Recyclable | Yes |
| Standard | IS 14246 |
| HSN code | 72106900 |
Where it is used

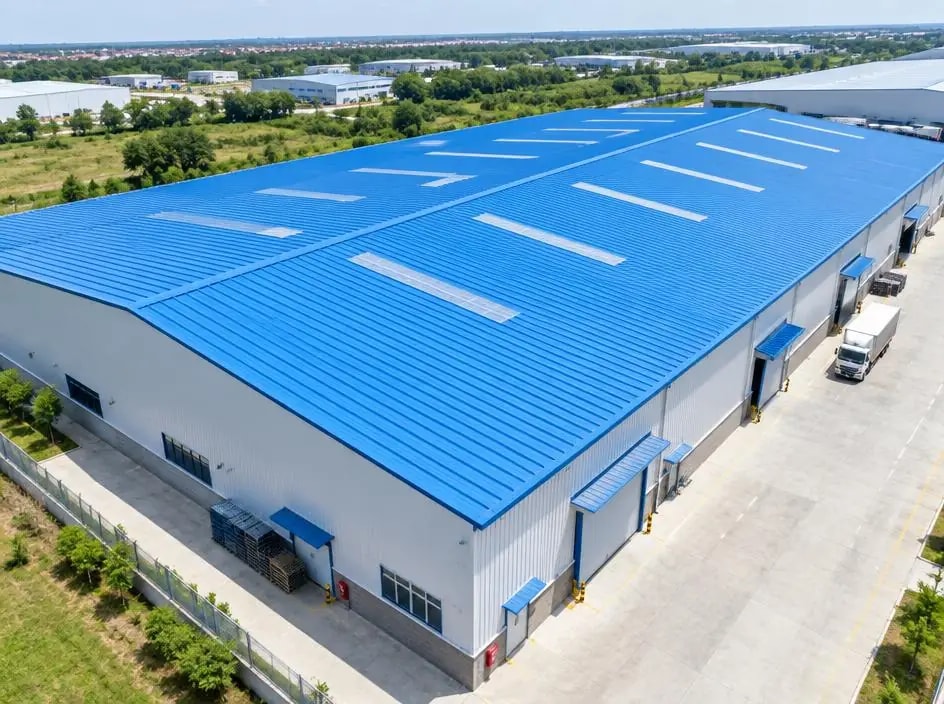

Profile Sheets (Roofing & Side Walls) supplied in the grade, size and finish factory & warehouse roofing require.

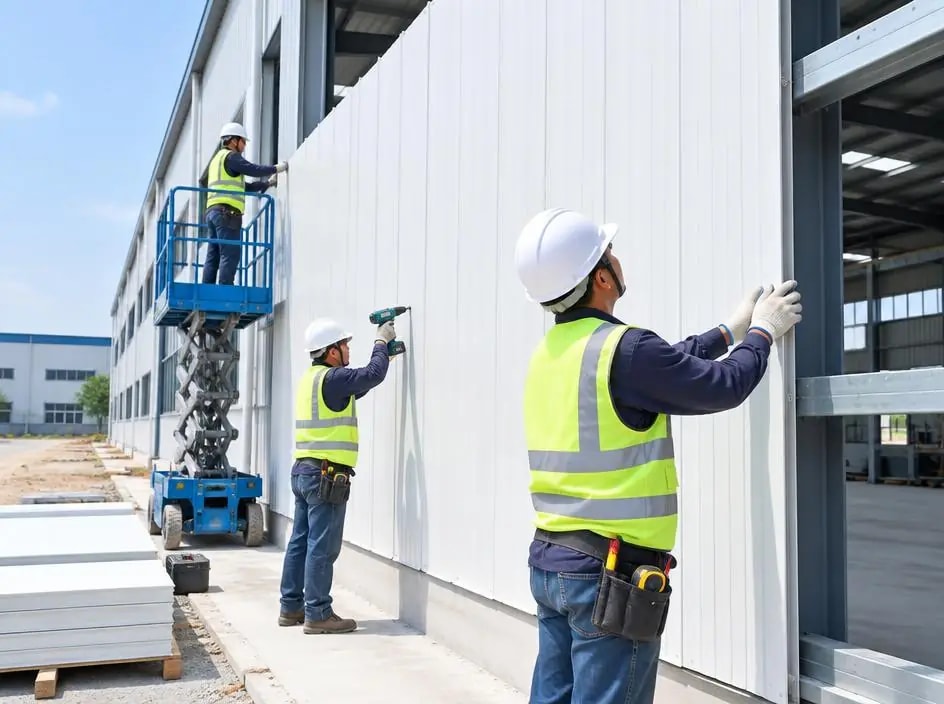

Profile Sheets (Roofing & Side Walls) supplied in the grade, size and finish side wall cladding require.
Profile Sheets (Roofing & Side Walls) supplied in the grade, size and finish pre-engineered buildings require.

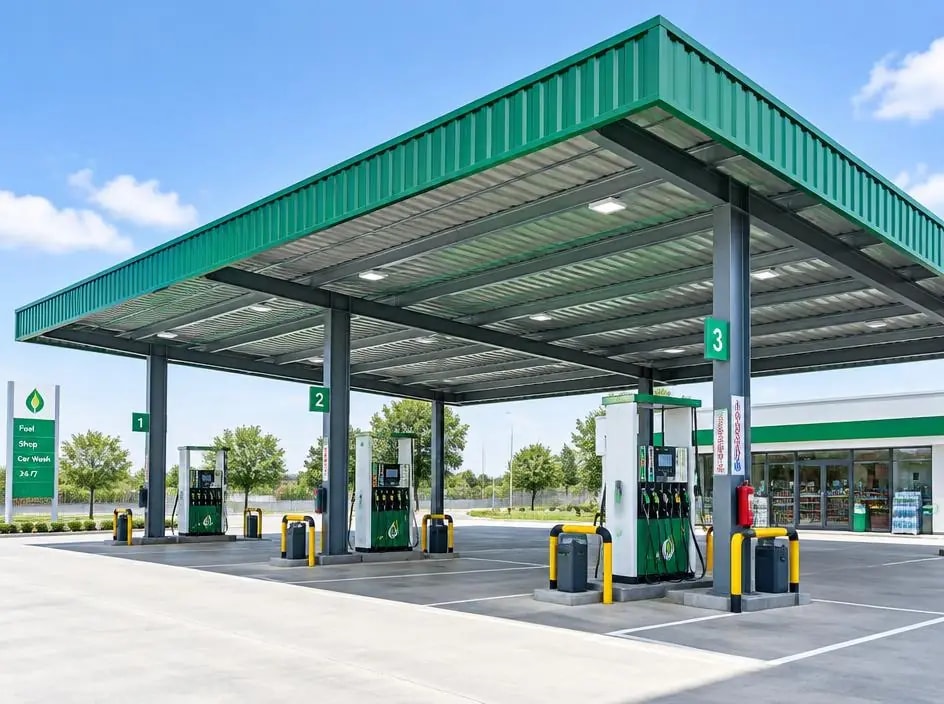

Profile Sheets (Roofing & Side Walls) supplied in the grade, size and finish sheds & canopies require.
Available shapes & forms
Full coils in GI, GL or colour-coated finish.
Plain sheets cut to length for fabrication.
Narrow coils slit for purlins, ducts and sections.
Trapezoidal and corrugated roofing and wall sheets.
What Avighna does with Profile Sheets (Roofing & Side Walls)
How Profile Sheets (Roofing & Side Walls) is made
PPGI and PPGL coil roll-formed into trapezoidal and corrugated profiles for roofing, side wall cladding and pre-engineered buildings.
- 1Coated coil selection
PPGI for general roofing and cladding, PPGL where coastal or industrial exposure demands the aluminium-zinc substrate.
- 2Roll forming
The painted strip passes through a series of forming rollers that raise the trapezoidal or corrugated profile without cracking the paint film.
- 3Cut to length
Sheets are cut to the rafter or wall length specified, so there are no site joins where the design does not want them.
- 4Accessories & despatch
Ridge caps, flashings, gutters and fasteners are supplied with the sheets and bundled for site handling.
